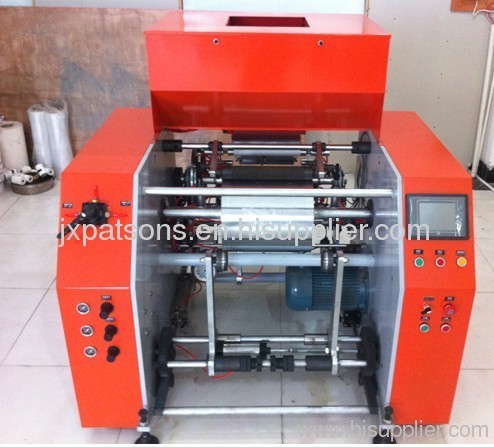

The 2011 new model of th e fully automatic PE stretch film/PVC cling film rewinding machine,this is upgraded technology from Italy,we have developed into better logical strecture.and much more practical,further more of cost effective.
it is with core auto loaading,5 shafts auto exchanging for rewinding,the speed is double than other machine.Auto warning when no paper core.free setting for the rewinding length.
The control is of LCD panel consists of "PLC+ transducer+ signal switch ". The main electrical components of high quality are imported. The performance of the machine is very stable and reliable .
The LCD panel is ergonomically design for easier operation and maintenance. It can be set as fully auto, semi auto and manual.
It is Ideal for production of the PVC food cling film roll,and PE stretch cling film roll for both film from film Blowing machine and film extruder machine.
Technical Data:
Max mother roll width: 400mm
Mother roll core:3''
Mother roll outer diameter:475mm
Finished roll core:1.5''-2''-3'',30,32,38mm(option)
Finished roll max outer diameter:300mm
Voltage:Option
Power:6.5kw
Speed:Max 650m/min
Dimension of the machine:1300x1150x1400mm(LWH)
